Having contracted at a number of companies over the years I've seen my fair share of horror shows with regard DNS. For something so simple it does have a lot of importance and should be regularly reviewed.

In my latest role the DNS setup was quite simple and I'm happy to report DNS scavaging was enabled, so the majority of records were correct and up-to-date.

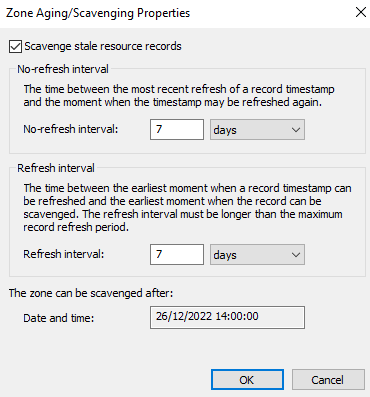

↑ Scavenging set correctly for the main AD domain zone.

So what to check?

Static records, do they still ping?

Cross reference records with AD.

Cross reference records with DMZ servers, hosted on VMware so we can use PowerCLI to check.

Check if A record has reverse lookup record (PTR) set?

With our secondary domain we had spit DNS setup, checks to ensure all records were correct.

# Use PowerShell to pull the PTR reverse records

$records = Get-DnsServerResourceRecord -ZoneName domain.locla -RRType A -ComputerName dnsServer.domain.local

foreach ($rec in $records)
{
$r_name = $rec.hostname
$r_timestamp = $rec.timestamp
$r_ttl = $red.timeToLive
$r_date = $rec.recordData.IPv4Address.IPAddressToString
...

What did we find? A few hundred records were wrong:

About 50 A records could be deleted

Several subnets were missing for reverse DNS lookup zones.

Some DMZ servers had been removed from VMware but the DNS record remained.

We found that our Fortinet Site-to-Site VPN did not have the rights to update the PTR record.

In our split DNS zone we added an MX record, it didn't fix an issue but some of the Microsoft health scripts we ran were a lot happier with it present.

While some of the fixes may sound trivial, when an issue occurs and you need to track down a client you will be happy to have a correct DNS setup.
